L.A. Fuess Partners Portfolio

Ventana by Buckner

Architect

D2 Architecture

Location

Dallas, TX

Area

611,000 sq. ft.

Building Height

12 stories

Architect

D2 Architecture

Location

Dallas, TX

Area

611,000 sq. ft.

Building Height

12 stories

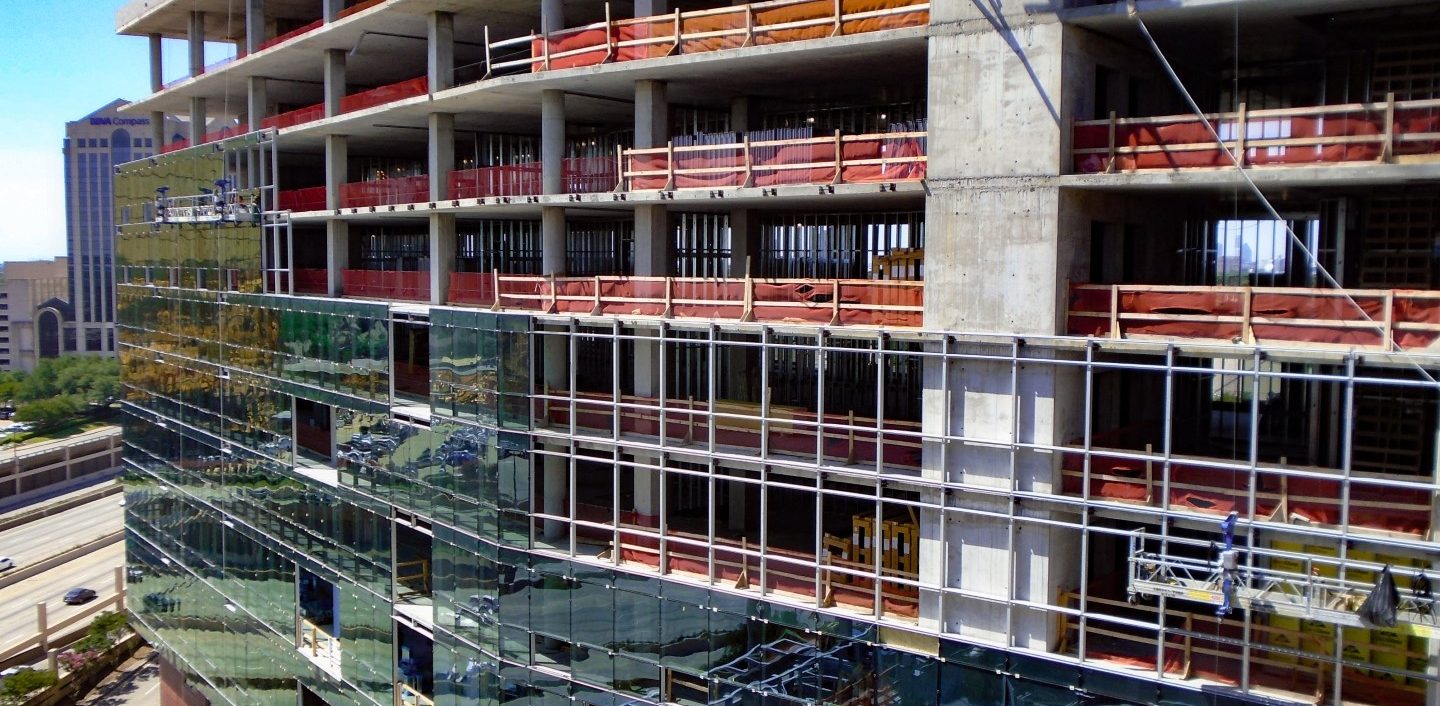

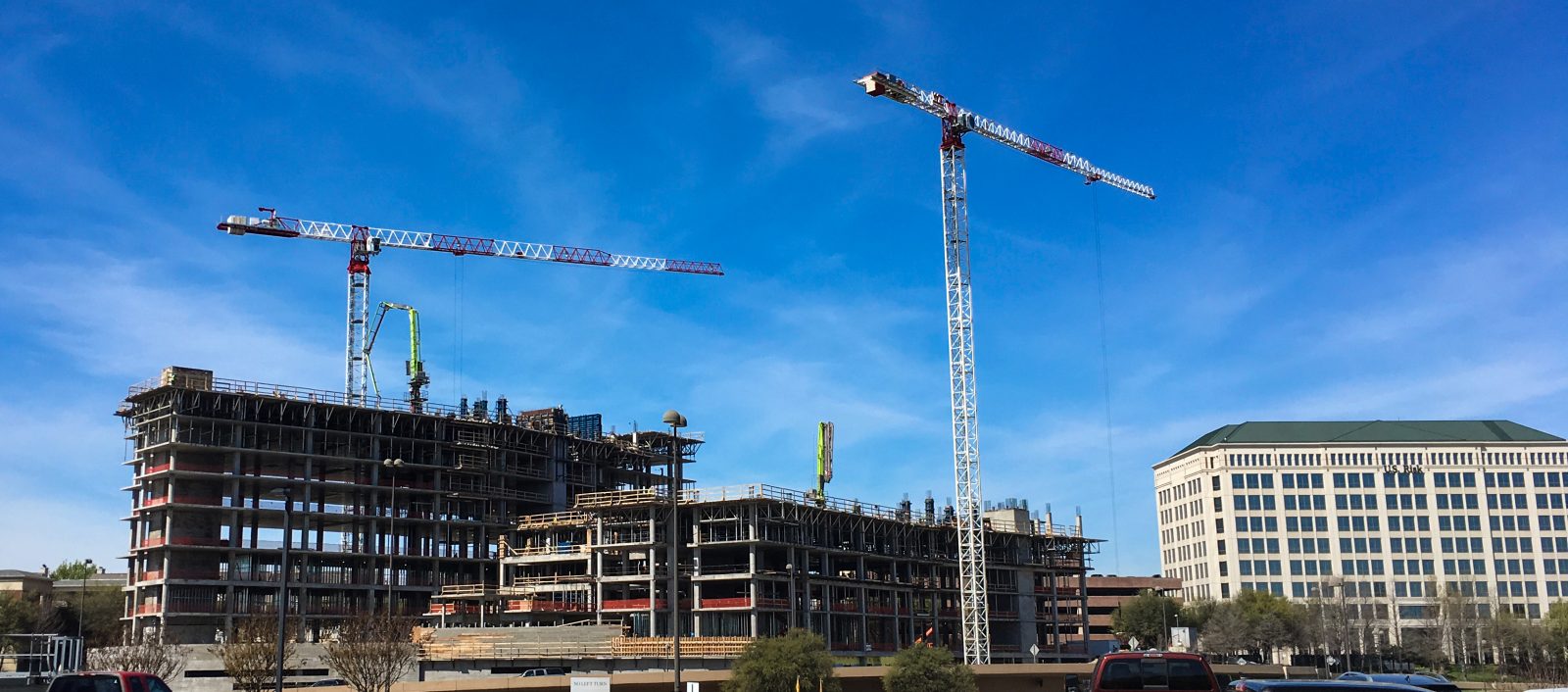

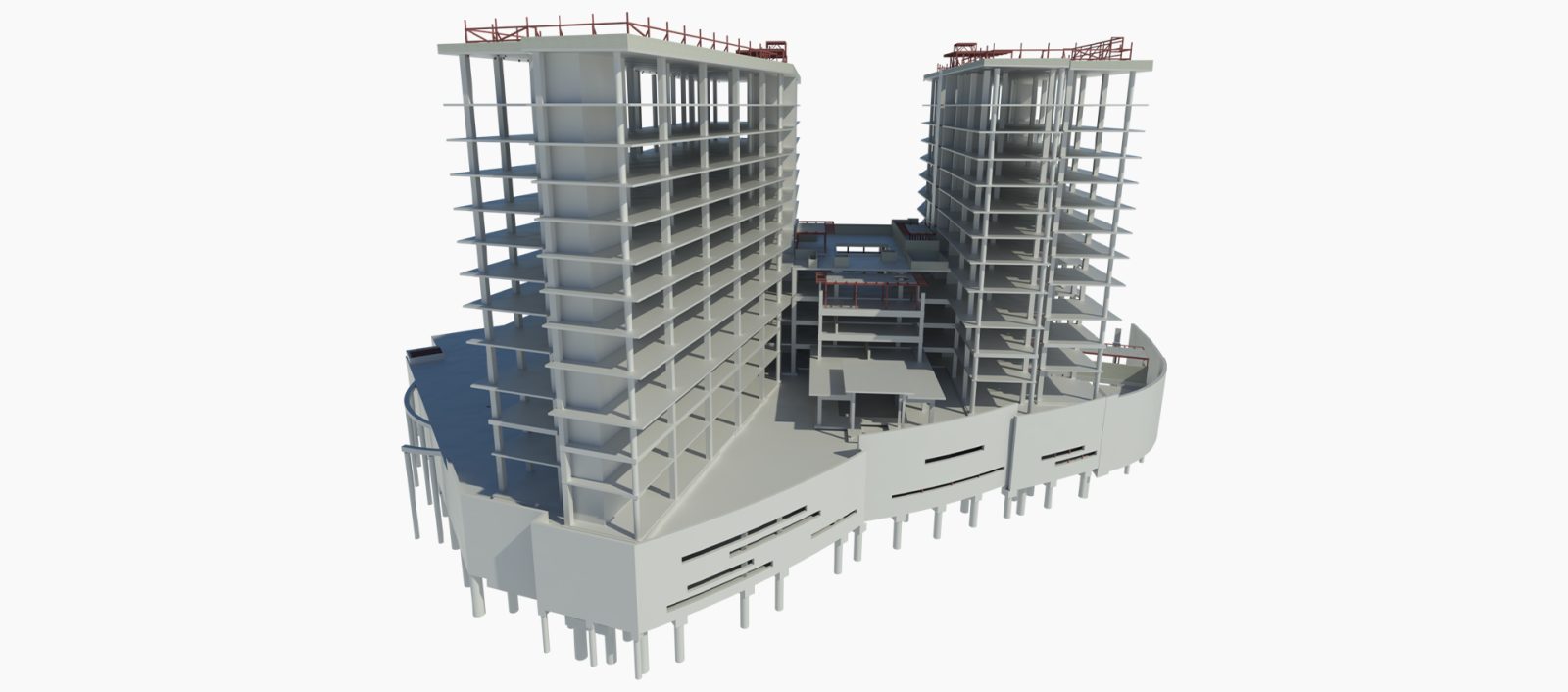

The project consists of two 12-story towers which are tied together through the first five floors.  Floors are cast-in-place two-way post-tensioned concrete slabs with concrete shear walls.

At the ground floor and first basement level, conventional pan-formed concrete framing is used for a below-grade two-level parking garage which occupies a substantial portion of the site.  Due to dramatic grade variation across the site, one edge allows for cars to drive directly onto a paved and landscaped top surface of the garage, while at the other, the parking is hidden behind a façade created using two-stories of curved board-formed concrete walls.

2019 Best Continuing Care Retirement Community (CCRC) Design Award – Senior Housing News


Photography: Sargent Photography
