L.A. Fuess Partners Portfolio

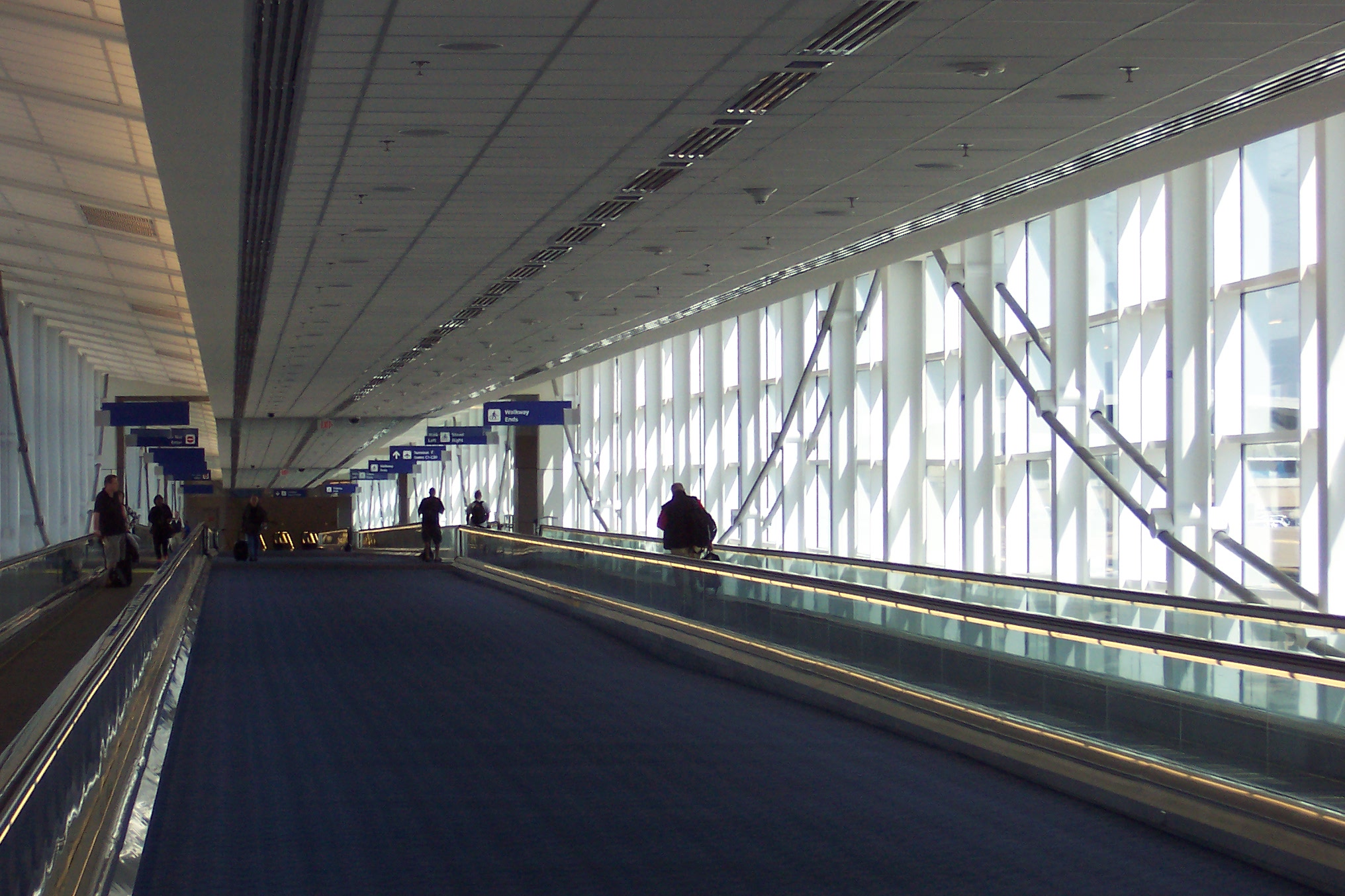

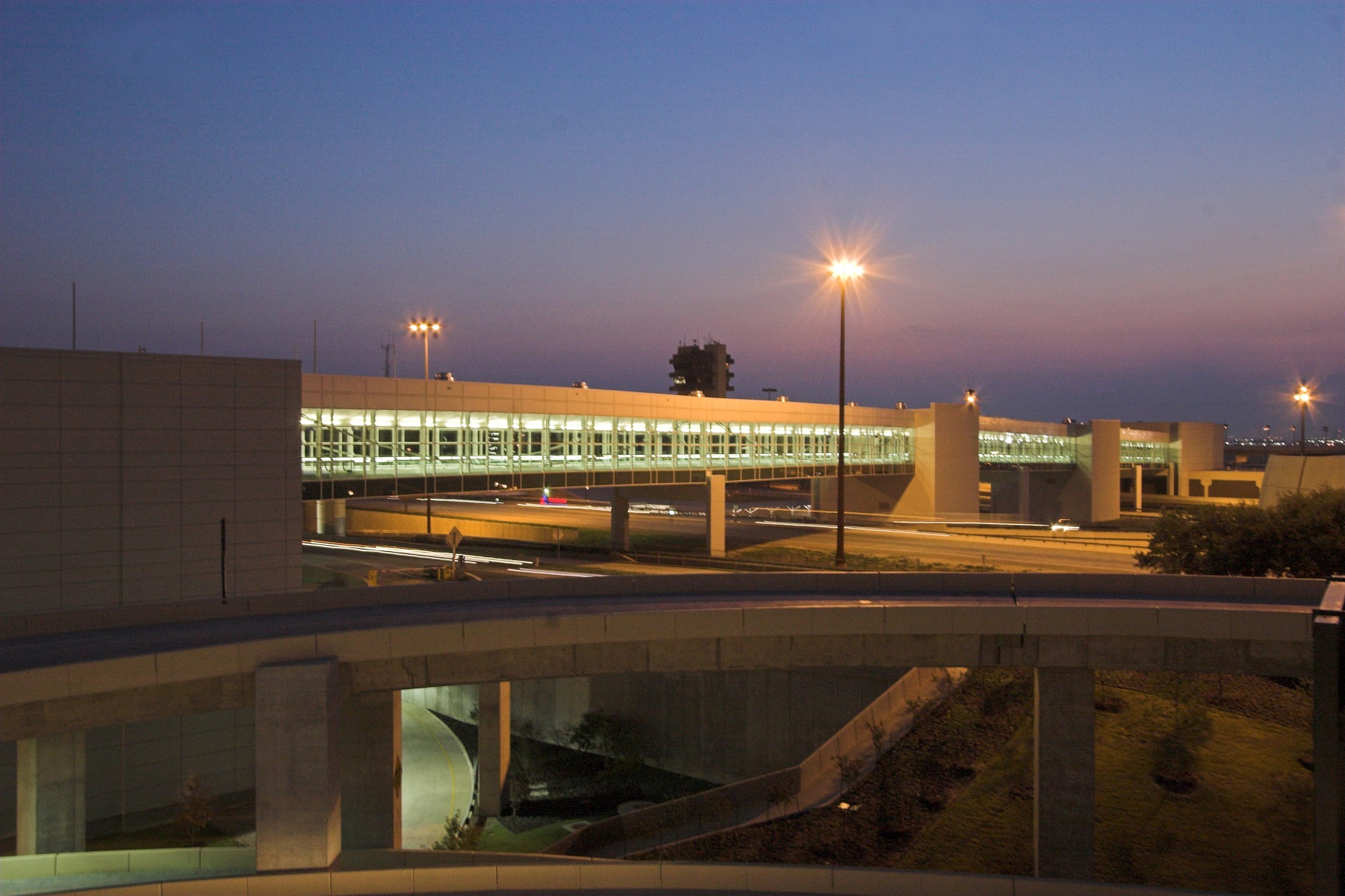

DFW Airport Terminal C/D Pedestrian Skybridge Construction DFW Airport Terminal C/D Pedestrian Skybridge Interior DFW Airport Terminal C/D Pedestrian Skybridge Interior DFW Airport Terminal C/D Pedestrian Skybridge Night

DFW Airport Terminal C/D Pedestrian Skybridge

Architect

HKS

Location

DFW Airport, TX

Area

24,000 sq. ft.

Building Height

50 ft

Architect

HKS

Location

DFW Airport, TX

Area

24,000 sq. ft.

Building Height

50 ft

The C-D Skybridge at D/FW International Airport connects Terminal C to the new International Terminal D and the DFW Airport Business Center — crossing east-to-west over the airport spine road, International Parkway. The structure is 800 feet in length, with the longest span about 170 feet in length, and 30 feet wide inside. Moving sidewalks carry passengers in both directions between the terminals.

Each bridge truss includes two pairs of draped 3-1/2 inch diameter exposed steel cables connected to exposed vertical wide-flange web members. In addition to this bridge, three exposed steel pedestriban bridges — a 170-ft span and two 110-foot spans — utilize similar draped cable designs to connect the terminal to the new 3.1 million square foot post-tensioned parking structure.
