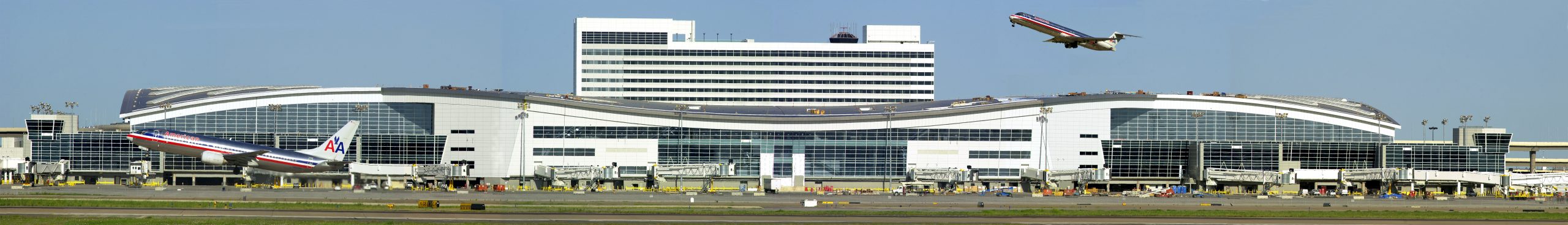

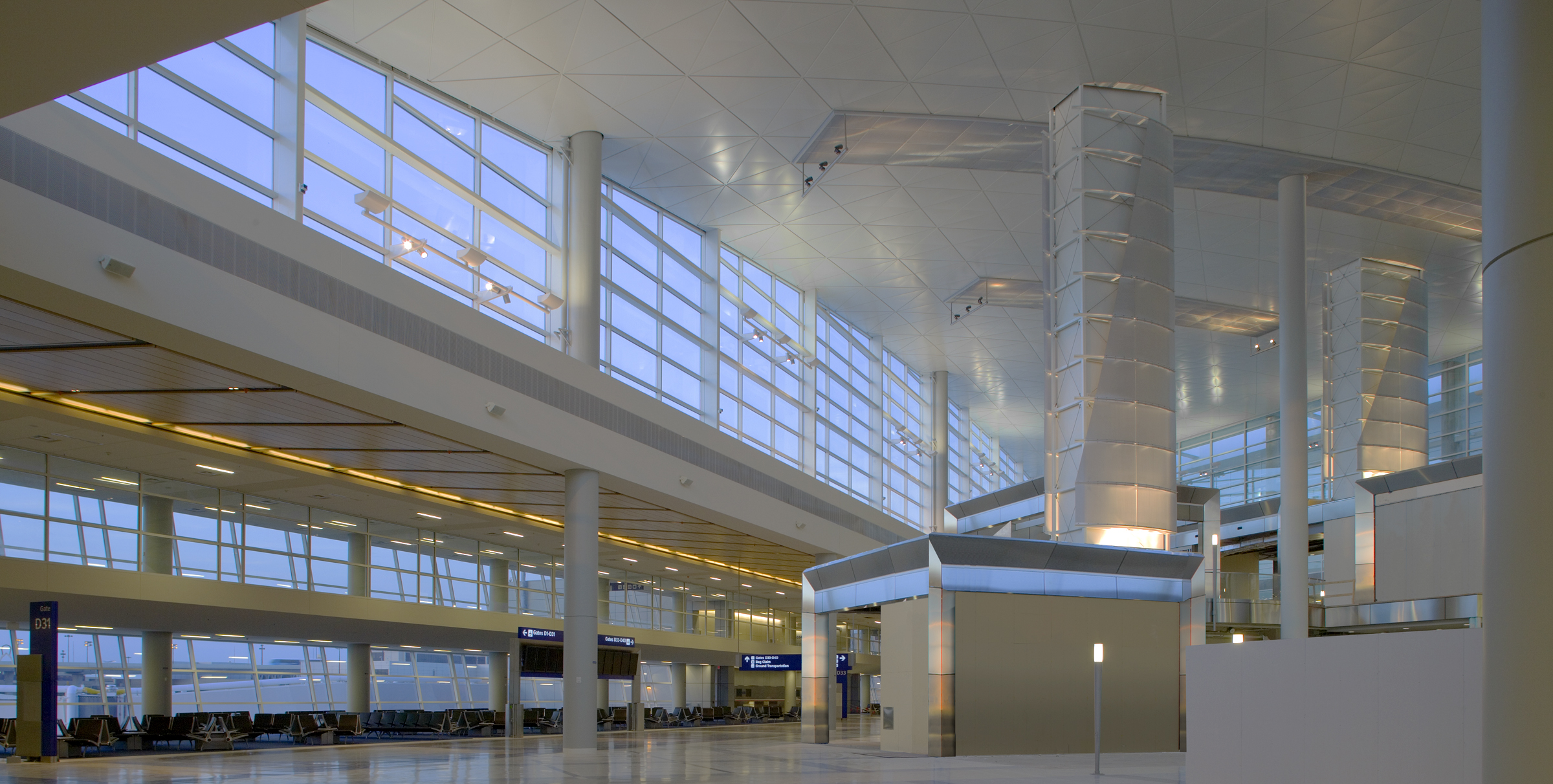

D/FW Airport International Terminal D - Hyatt Grand Hotel D/FW Airport International Terminal D - Interior Ticketing D/FW Airport International Terminal D - Interior D/FW Airport International Terminal D - Panoramic D/FW Airport Terminal D Canopy D/FW Airport Terminal D Exterior Ground D/FW Airport Terminal D Gates - Night D/FW Airport Terminal D Panorama - Night

DFW Airport International Terminal D

Executive Architect

HKS

Location

DFW Airport, TX

Area

2,000,000 sq. ft.

Building Height

6 stories

Executive Architect

HKS

Location

DFW Airport, TX

Area

2,000,000 sq. ft.

Building Height

6 stories

“Award of Exceptional Merit” 2008 by National Council of Structural Engineers Associations

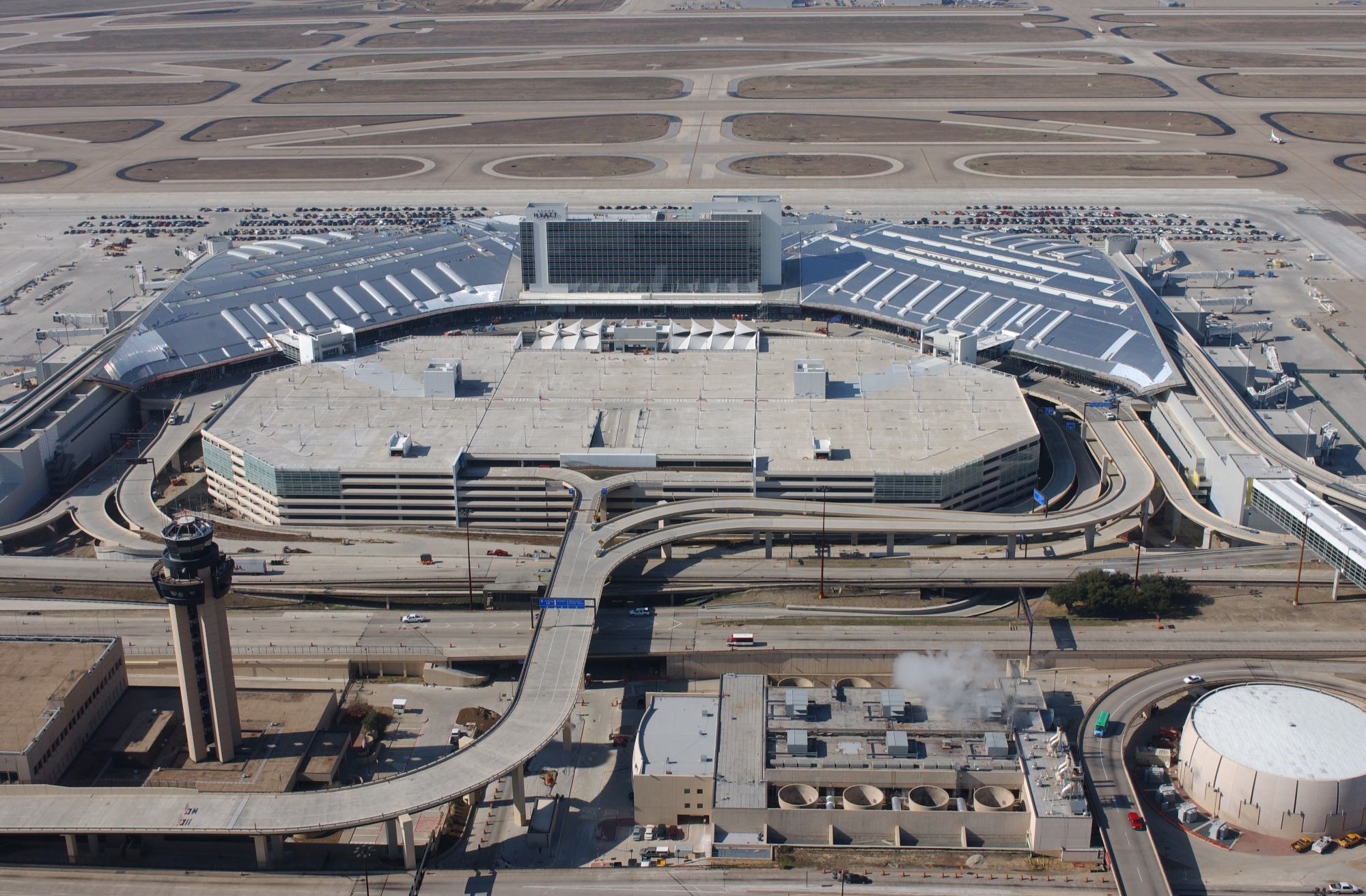

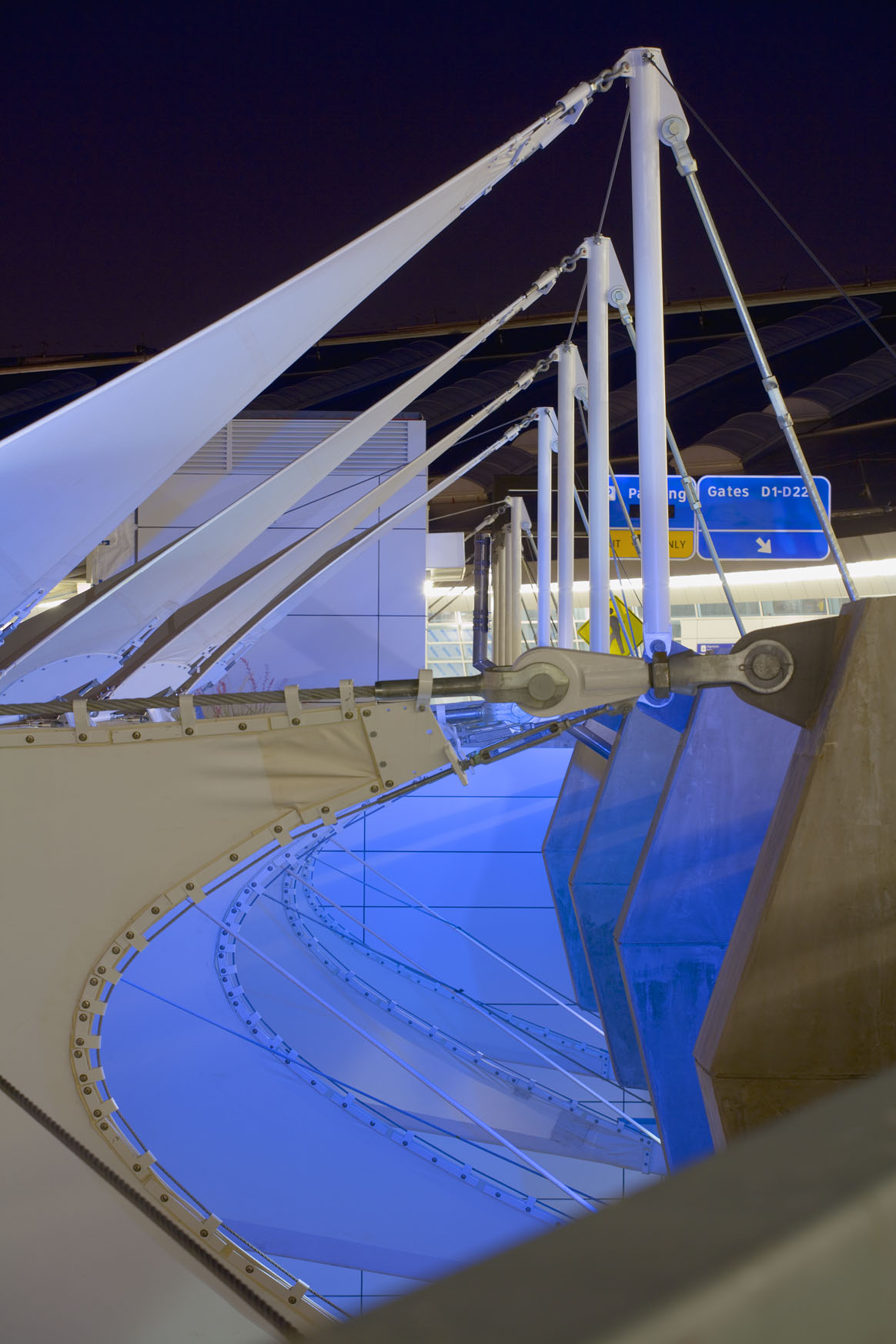

A 2 million sq. ft. terminal on 6 levels, with 23 international gates, an FIS facility, a roof-supported Automated People Mover system connecting to all other terminals, and 100,000 sq. ft. of interior multi-level retail space. International Terminal D is the 5th terminal to be constructed at DFW International Airport. The project was built using nearly 12,500 tons of steel. Significant structural elements include a 45-foot cantilevered canopy, an 800-foot-long, six-span sky bridge, nearly four hundred feet of pedestrian bridges, a 3.1 million square foot post-tensioned parking structure, and an elevated, inter-terminal people mover. Notice to proceed on the project was granted June 2000, and a drilled pier package was issued that November, a full 18 months before architectural drawings were to be completed.  To complicate the project, terrorism prevention measures were incorporated in the days after 9/11. Features such as blast walls, steel jacketed columns, upsizing of framing for blast pressure resistance, and the addition of bottom flange beam bracing to improve ductility, were all added. Terminal D sets itself apart by changing from the traditional DFW horseshoe shape to one stretched outward, further distinguishing this terminal from the other four.

— Structure Magazine, Dec 2008


Photography: Craig Blackmon (interiors, hotel exterior)



Key Structural Contact

Scott D. Wilson, P.E.
Scott D. Wilson, P.E.
Principal/Vice President
